Capacitive Touchscreen Mazda Car Stereo With 10.25" IPS Screen Wireless Carplay

Capacitive Touchscreen Mazda Car Stereo With 10.25" IPS Screen Wireless Carplay

  • Capacitive Touchscreen Mazda Car Stereo With 10.25" IPS Screen Wireless Carplay
  • Capacitive Touchscreen Mazda Car Stereo With 10.25" IPS Screen Wireless Carplay
  • Capacitive Touchscreen Mazda Car Stereo With 10.25" IPS Screen Wireless Carplay
  • Capacitive Touchscreen Mazda Car Stereo With 10.25" IPS Screen Wireless Carplay
Capacitive Touchscreen Mazda Car Stereo With 10.25" IPS Screen Wireless Carplay
Product Details:
Place of Origin: China
Brand Name: Route
Model Number: CX-3
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: 250USD-307USD
Packaging Details: Carton package
Delivery Time: 7 working days
Payment Terms: T/T, Western Union
Supply Ability: 100000pcs/Month
Contact Now
Detailed Product Description
Model: CX-3 Car Placement: Dashboard Picture
Audio Output: From Original Car System Screen Size: 10.25inch
Touch Screen: Full Capacitive External Microphone: Support
Wireless Carplay: Support DSP: 32 Bands Of EQ
High Light:

Touchscreen Mazda Car Stereo

,

Capacitive Mazda Car Stereo

,

10.25" Touchscreen Car Stereo

Mazda Car Stereo For CX-3 With 10.25inch IPS Screen Resoluiton 1920*720 Support Wireless Carplay



Product Description

  1. It supports the dual system for car models that with original screen, easily switch from original car system to Android system, more functions as option.
  2. 16*2 bands DSP independent adjustment of front and rear EQ, allows you to sculpt the sound of any instrument so that it stands out in the mix, making your driving more enjoyable.
  3. Built-in GPS module, can support online and offline map, while driving, can display real-time traffic conditions, radi and accurate positioning.

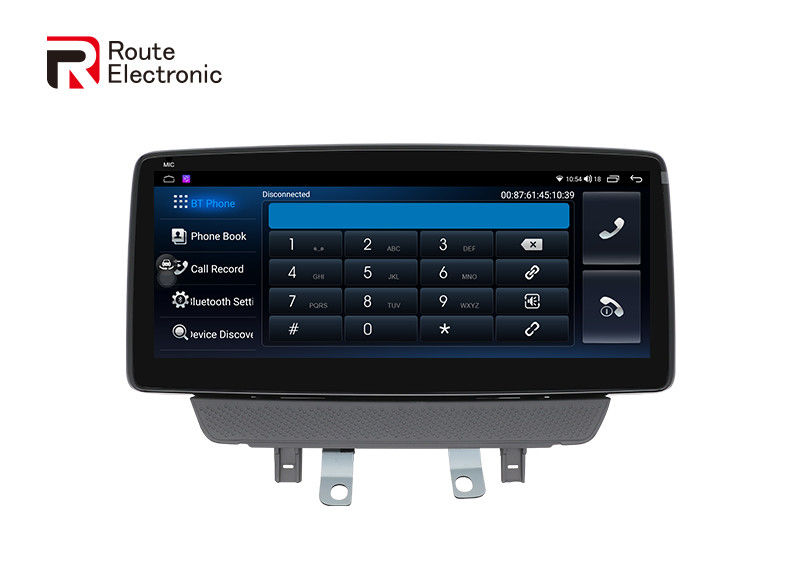

  4. Bluetooth 5.0 is aimed at low-power devices, with wider coverage ,Long signal distance, fast speed and better call quality, support lyrics display, ID3 information, network sharing.

  5. Screen Split allows us to watch two separate inputs at one time. The screen can show two apps at the same time. For example, you can see the GPS navigation and also play the real-time recording at the same time. We don’t need to bother to switch two apps frequently anymore.

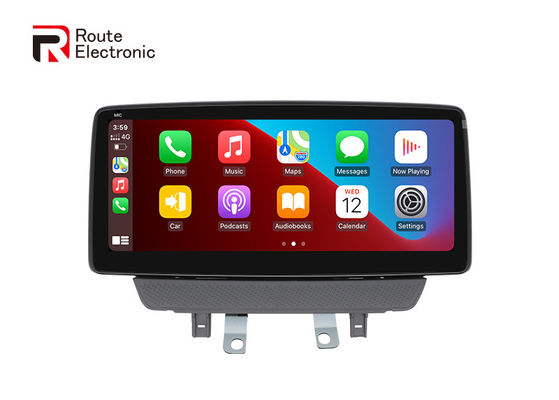

  6. Support wireless carplay and Android auto, Automatically switch to carplay or Android auto interface after connecting the mobile phone, and you can touch and control various functions on the screen.
  7. It can support steering wheel control, so driver can use steering wheel buttons to control the unit instead of touching on the screen, more safety on road.
  8. IPS 10.25inch big screen; resolution: 1920*720, super clear for video display.
  9. We can accept customized booting logo, can be picture or animation logo.
  10. It can support built-in microphone and external microphone at the same time. But with external microphone, you will get better sound quality while receiving a call.



Product Specification



Mazda Car Stereo For CX-3 With 10.25inch IPS Screen Resoluiton 1920*720 Support Wireless Carplay





OS Android12
CPU UIS7862S, Octa core 2.0 GHZ (dual core ARM Cortex A75, six core ARM Cortex A55 )
GPU

Dual core ARM Mali G52 614.4MHz

RAM LPDDR4 3/4GB (max support 8GB)
ROM EMMC 32/64GB (max support 128GB)
Resolution 1920*720
Screen size 10.25inch
Touch screen Full capacitive
DSP 32 bands
DVR Support
TPMS Supoprt
Bluetooth specification v2.1 + EDR, v5.0 Low Energy (LE),phone book download (external bluetooth option:Realtek 8761BTV)
Wifi 802.11 b/g/n support 5G WIFI
4G(GSM) Support
Dual system Supoprt
Radio Use original car radio
Audio output From original car system
Reversing camera Support AHD, 720P, 10280P
Built-in 360 bird view system, support 720P, 1080P
Wireless carplay Support
Android auto Support
USB USB 2.0, one channel
SD card SD 3.0, one channel
Video format 1080p@30fps/50Mbps(H.264)
1080p/30fps/40Mbps(MPEG-4/VP8/H.263DIVX4/DIVX5/DIVX6/XVID)
1080p@30fps/10Mbps(MPEG-2)
720p@30fps/1.6Mbps(VP9)
720p@30fps/4Mbps(H.265)



Mazda Car Stereo For CX-3 With 10.25inch IPS Screen Resoluiton 1920*720 Support Wireless Carplay





Mazda Car Stereo For CX-3 With 10.25inch IPS Screen Resoluiton 1920*720 Support Wireless Carplay

Mazda Car Stereo For CX-3 With 10.25inch IPS Screen Resoluiton 1920*720 Support Wireless Carplay

Mazda Car Stereo For CX-3 With 10.25inch IPS Screen Resoluiton 1920*720 Support Wireless Carplay

Mazda Car Stereo For CX-3 With 10.25inch IPS Screen Resoluiton 1920*720 Support Wireless Carplay



To Dear customers:



Please note:

  1. Terms of delivery/shipment: FOB Shenzhen
  2. Terms of payment: T/T 30% as deposit, and 70% balance before shipment.
  3. Lead time: sample and small order, 3-7 working day after receiving payment; bulk order, please negotiate before placing orders.
  4. Sample policy: we can provide sample to test, but it will be charged for fee and shipping cost.
  5. Warranty time: 12 months, for all our products.
  6. Please always contact us before purchasing,to make sure you will buy the correct products(car model/car year) and receive them in expected time.
