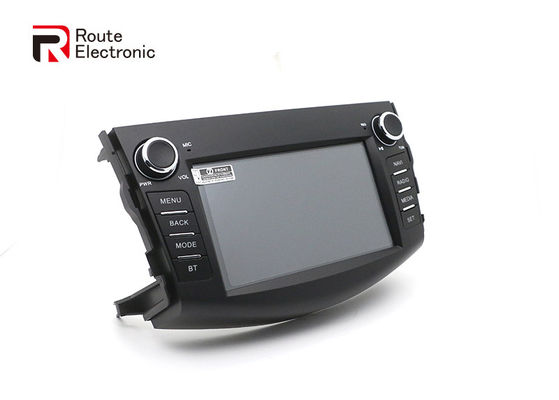

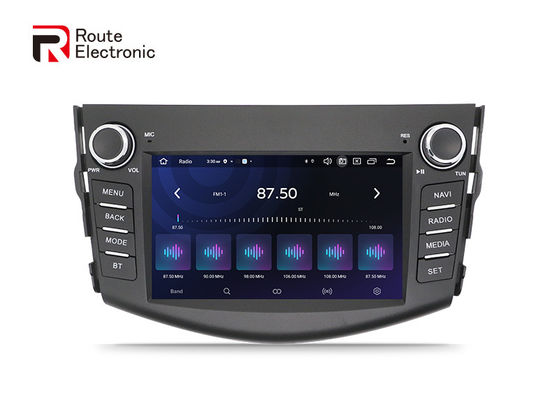

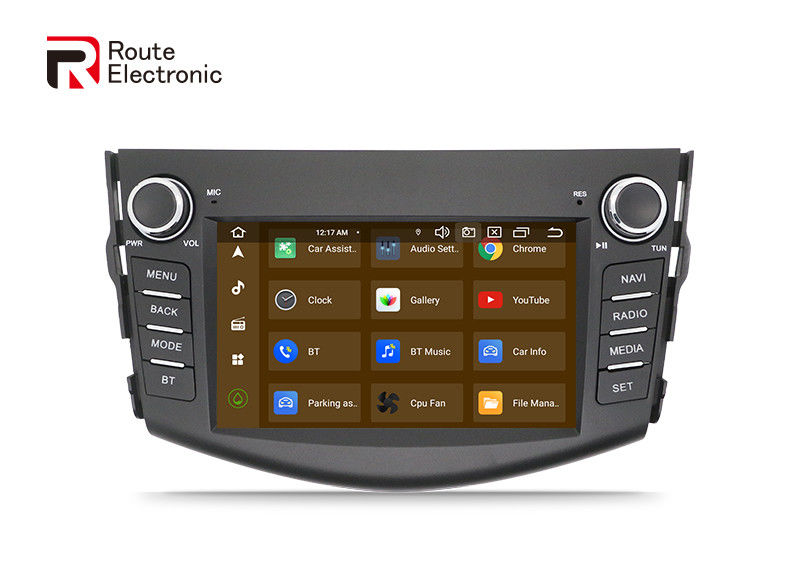

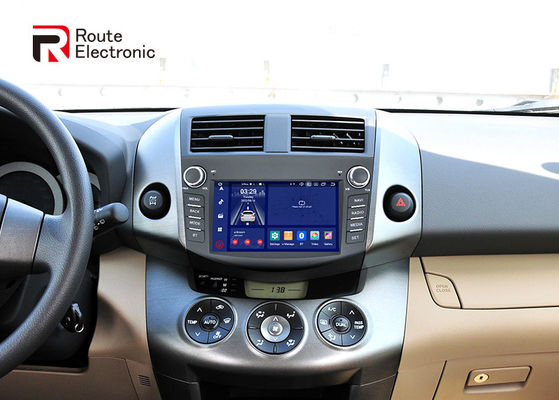

Toyota Rav4 Octa Core Android Car Audio With Buttons Support Carplay

Toyota Rav4 Octa Core Android Car Audio With Buttons Support Carplay

  • Toyota Rav4 Octa Core Android Car Audio With Buttons Support Carplay
  • Toyota Rav4 Octa Core Android Car Audio With Buttons Support Carplay
  • Toyota Rav4 Octa Core Android Car Audio With Buttons Support Carplay
  • Toyota Rav4 Octa Core Android Car Audio With Buttons Support Carplay
Toyota Rav4 Octa Core Android Car Audio With Buttons Support Carplay
Product Details:
Place of Origin: CHINA
Brand Name: Route
Certification: CE, ROHS, CCC, ISO9001, 16949
Model Number: Toyota Rav4
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: 101-117USD
Packaging Details: white box, carton package
Delivery Time: 3-5days
Payment Terms: T/T, Western Union, PAYPAL,
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Car Fittment: Toyota Rav4 Touch Screen: Capacitive
Resolution: 1024*600IPS Screen Size: 7inch
Function: SDK, GPS, Stereo, HANDSFREE, TPMS, RGB, Amplifier, OBD2, DVB+, Mirror Link, Picture In Picture, Built-in Microphone, Split Screen, File Manager, Torque Pro, Car Steering Wheel Control, Built-In Speaker, GPS+IPOD+BT+Radio+AUX Built-in 360: Support(optional)
High Light:

Toyota Rav4 Android Car Audio

,

Android Car Audio Support Carplay

Toyota Rav4 Android Octa Core Car Audio With Buttons Support Carplay And Android Auto





Compatible car model list:



For Toyota RAV4 2006-2012



Product description:

Toyota Rav4 Android Octa Core Car Audio With Buttons Support Carplay And Android Auto

1. Operation system: Android 12
2. CPU: Octa core, up to 2.0GHZ, (Dual core, 2*ARM Cortex A75+6*ARM Cortex A55 )
3. RAM/ROM(Memory): 2+32/4+64/8+128
4. Built-in DSP, 32 bands with amazing sound quality
5.
Support GPS high-precision and precise positioning, support multi-nationavoice navigation broadcast, support offline map andonline 3D map navigation.

6. Support 4G LTE,
7. Built-in Wifi module, you can connect to the lnternet by connectingto a mobilephone hotspot or a router, and then you candownload APPs,watch online movies,listen toonline music browse the web,etc.
8. Built-in bluetooth 5.0
9. Support wireless carplay and wired Android auto
10. HD LCD display with IPS LCD, resolution: 1024*600 QLED(optional),
11. Multi-touch with 2.5D touch screen
12. Support voice control(optional)
13. Support steering wheel control
14. Support optical and coaxial
15. Built-in 360 bird view system (optional)

16. Running score is over 200,000, fast booting time

17. Support multiple languages around the world (customizable)

18. Support Mirrorlink, The mobile phone content can be synchronized anddisplayed on the car screen

19. Support optical fiber,enhance original audio quality

20. Built in Cooling fan on the back device.

21. With CANBOX box, support original car information

22. Support TPMS function (optional)

Toyota Rav4 Android Octa Core Car Audio With Buttons Support Carplay And Android Auto



Product Specification



OS Android 12
CPU 4G LTE CPU 4*A53 2.0 G + 4*A53 1.5 G
MCU MCU MM32SPIN27PF
RAM 2G/4G/6G
ROM 32G/64GB/128GB
Screen type MIPI /IPS
Screen size 7inch
Touch screen Capacitive, full touch
Resolution 1024*600(max support 1920*1080)
UI menu Accept customized
Installation type 2din
Booting logo Support customized
RGB Support 7 colors
4G(bands) GSM:B2/B3/B5/B8
WCDMA:B1/B2/B4/B5/B8
TD-SCDMA:B34/B39
LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B17/B20
LTE-TDDB38/B39/B40/B41
Radio tuner 4745(AM/FM/RDS)
Power IC YD7388/ST7851L
Power output 4*45W
Bluetooth Built-in 5.0, support hands-free phone call
Working voltage 12V
GPS GPS/Galileo/GLONASS/Beidou(B1I & B1C)
WIFI Built-in WiFi Dual band 2.4/5 GHz 1x1 20/40/80 MHz IEEE
802.11a/b/g/n/ac
Microphone Built-in and external mic
DSP 36 bands of EQ
USB 3 channels
Video out Support(by connecting with USB adapter)
DVR USB type DVR (optional)
TPMS Support(optional)
360 camera Built-in (optional )
Mirror link Support iphone and Android phone
Carplay Wired and wireless
Android auto Wired and wireless
Rear view camera AHD 720P,Max support 1080p
Storage Support SD (TF) card

Toyota Rav4 Android Octa Core Car Audio With Buttons Support Carplay And Android Auto

Toyota Rav4 Android Octa Core Car Audio With Buttons Support Carplay And Android AutoToyota Rav4 Android Octa Core Car Audio With Buttons Support Carplay And Android AutoToyota Rav4 Android Octa Core Car Audio With Buttons Support Carplay And Android AutoToyota Rav4 Android Octa Core Car Audio With Buttons Support Carplay And Android Auto

To Dear customers:



Please note:
1.Terms of delivery/shipment: FOB Shenzhen
2.Terms of payment: T/T 30% as deposit, and 70% balance before shipment.
3.Lead time: sample and small order, 3-7 working day after receiving payment; bulk order, please negotiate before placing orders.
4.Sample policy: we can provide sample to test, but it will be charged for fee and shipping cost.
5.Warranty time: 12 months, for all our products.
6.Our price is not including the customs tax,buyer is responsible to handle your local customs tax /duty.

7.Please always contact us before purchasing,to make sure you will buy the correct products(car model/car year) and receive them in expected time.
