Panoramic 360 Degree Bird View Camera 2D 3D Display Mode For Car

Panoramic 360 Degree Bird View Camera 2D 3D Display Mode For Car

  • Panoramic 360 Degree Bird View Camera 2D 3D Display Mode For Car
  • Panoramic 360 Degree Bird View Camera 2D 3D Display Mode For Car
  • Panoramic 360 Degree Bird View Camera 2D 3D Display Mode For Car
  • Panoramic 360 Degree Bird View Camera 2D 3D Display Mode For Car
Panoramic 360 Degree Bird View Camera 2D 3D Display Mode For Car
Product Details:
Place of Origin: China
Brand Name: Route
Certification: ISO CE
Model Number: Sony 307
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: 52-62USD
Payment Terms: T/T, Western Union
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Car Model: 360 Panorama Camera CPU: High-performance NVP C5 ISP Processor
Camera Type: AHD 1080P Video Format: PAL & NTSC
Working Temperture: '-20~80℃ Power Supply: 12V
High Light:

panoramic 360 Degree Bird View Camera

,

2D 360 Degree Bird View Camera

,

3D 360 panoramic camera for car

360 Panoramic Car Camera Sony 307 Support 2D And 3D Display Mode 360 Bird View Angle



Compatible car models:



Universal





Product Description



1.360 panorama camera also known as the rear vision reversing image system or parking assistance system. This function for novice drivers or relatively large cars are of great help, especially when the road is relatively narrow, so that you can intuitively observe the surrounding environment of the car, there will not be a crash because the road condition is not clear and the accident of pulling cylinder. In fact, the 360° panoramic image system is an upgrade of the rear view reversing image system or the parking assist system.
2. With 360 panoramic parking assist mode, with R gear/reverse gear automatically switch to the reverse screen.

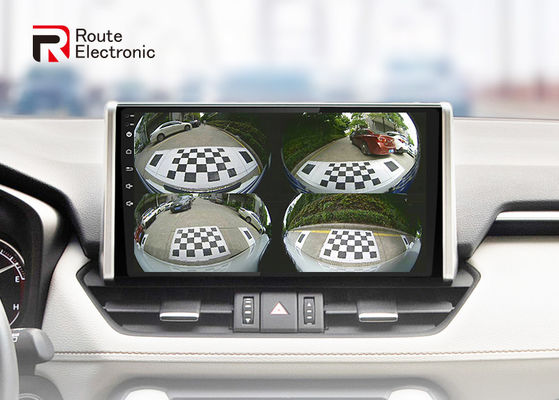

3. It supports 2D and 3D video display, driver can freely to switch the 2D and 3D modes according to their demands.

4.It supports to set the car model type (car /SUV/MPV) and model color, so to make the car more personalization.

5. The cameras support night vision, even the driver is driving at night, can see the images very clearly.

6. The camera will work with Android car radio, support video recording.

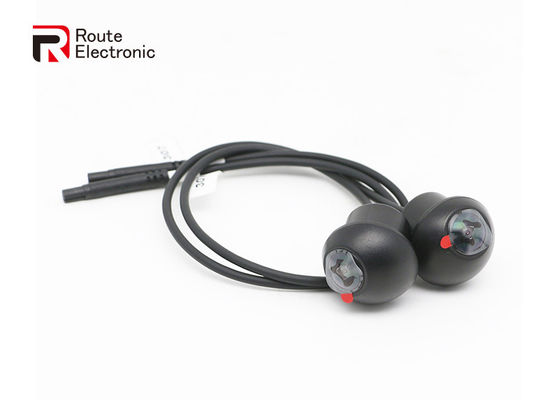

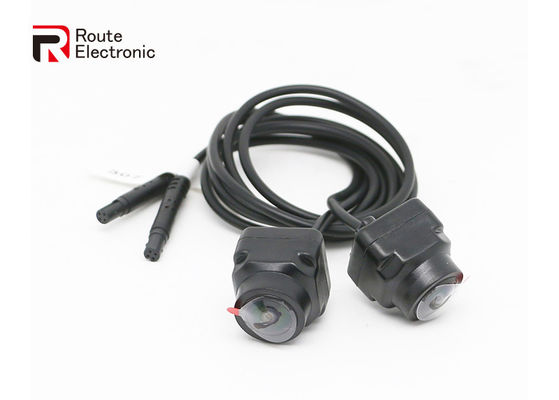

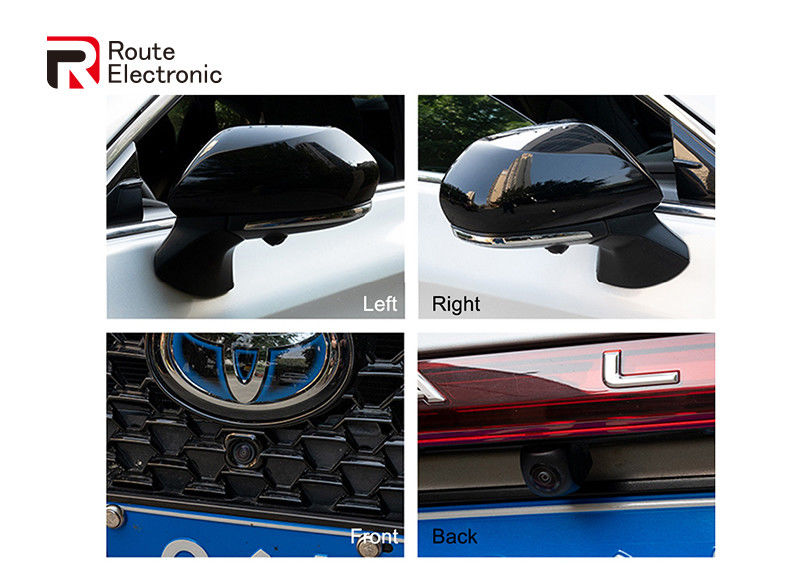

7. With four 180°ultra-wide angle fish-eye cameras, this unit provides you with raw images for processing.



Product Specifition



360 Panoramic Car Camera Sony 307 Support 2D And 3D Display Mode 360 Bird View Angle



Image sensor SONY IMX307 1/3” 1280*1080P
CPU high-performance NVP C5 ISP processor
 format PAL & NTSC
PAL Frame rate PAL:1280*1080 @25fps
PAL:1280*960 @25fps

NTSC frame rate NTSC:1280*1080@30fps
NTSC:1280*960@30fps
Video standard AHD
minimum illumination colorful 0.0011LUX/F1.2
Resoution AHD:2 milion pixels 1080P/AHD:1.3 milion pixels 960P(optional)
Electronic shutter 1/50(1/60) ~1/100000s
White Balance Auto
Digital Noise Reduction 3D noise reduction
Voltage/Current 9V-16V/80MA(optional)
Signal to Noise Ratio ≥48dB
Video out 1.0Vp-p,75Ω
power consumption 0.6W±10%
Working temperture '-20~80℃
Humidity <80%
Aperture D/f' aperture F: 1.8
Focal-Length(mm) >1.4MM
Mount M12x0.5-6g
FOV 1/2.9'' D:230°, H:220°,V: 140°; 1/3'' :230°, H:210°,V: 130°
TTL(mm) 13
Back focal -length 2.16
warranty  1 year
Distortion <19.2%
Camera lens Glass



360 Panoramic Car Camera Sony 307 Support 2D And 3D Display Mode 360 Bird View Angle



360 Panoramic Car Camera Sony 307 Support 2D And 3D Display Mode 360 Bird View Angle360 Panoramic Car Camera Sony 307 Support 2D And 3D Display Mode 360 Bird View Angle360 Panoramic Car Camera Sony 307 Support 2D And 3D Display Mode 360 Bird View Angle

To Dear customers:



Please note:

  1. Terms of delivery/shipment: FOB Shenzhen
  2. Terms of payment: T/T 30% as deposit, and 70% balance before shipment.
  3. Lead time: sample and small order, 3-7 working day after receiving payment; bulk order, please negotiate before placing orders.
  4. Sample policy: we can provide sample to test, but it will be charged for fee and shipping cost.
  5. Warranty time: 12 months, for all our products.
  6. Please always contact us before purchasing,to make sure you will buy the correct products(car model/car year) and receive them in expected time.
