Star Light Night Vision 360 Panoramic Car Camera For Bus Truck Security

Star Light Night Vision 360 Panoramic Car Camera For Bus Truck Security

  • Star Light Night Vision 360 Panoramic Car Camera For Bus Truck Security
  • Star Light Night Vision 360 Panoramic Car Camera For Bus Truck Security
  • Star Light Night Vision 360 Panoramic Car Camera For Bus Truck Security
  • Star Light Night Vision 360 Panoramic Car Camera For Bus Truck Security
Star Light Night Vision 360 Panoramic Car Camera For Bus Truck Security
Product Details:
Place of Origin: China
Brand Name: Route
Certification: ISO CE
Model Number: Sony 307
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: 52-62USD
Payment Terms: T/T, Western Union
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Car Model: 360 Bird View System Image Sensor: 1/2.9“ CMOS(S226)
Frame Rate: 1080P@25fps Video Signal: AHD
Working Temperature: -20~+70℃ Rated Working Voltage: 5V
High Light:

Star Light 360 Panoramic Car Camera

,

Security 360 Panoramic Car Camera

360 Panoramic Car Camera 1080P AHD SONY 307 Camera With Star Light Night Vision For Bus And Truck Security Camera



Compatible car models:



Universal





Product Description

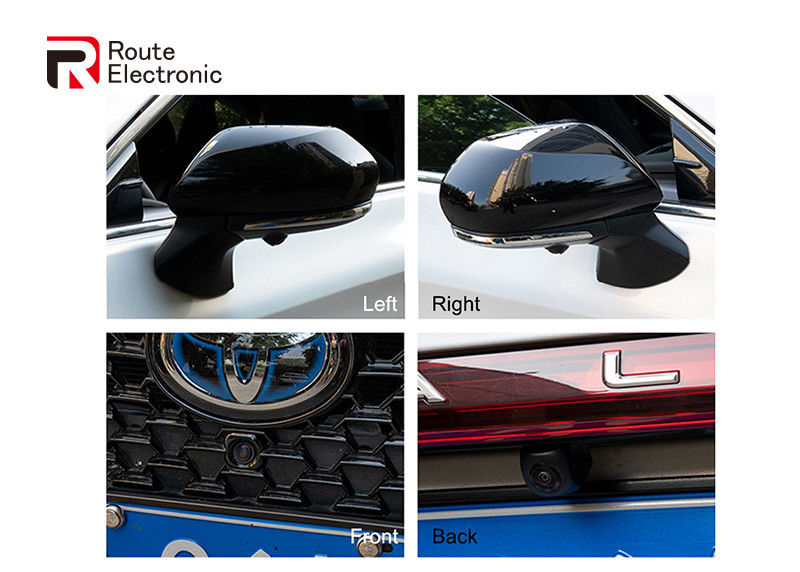

1.360 panoramic camera is a high-performance driving assistance system, with 2 groups (4pcs) of cameras,they can help to reduce driving blind spots, which may bring many safety hazards and troubles. The 360° panoramic image system is an upgrade of the rear view reversing image system or the parking assist system
2. Professional design of automotive electronics, with good environmental adaptability and working stability, the details are
clearer in the darker environment, the picture is transparent, closer to the scene, and can excellently restore colors.

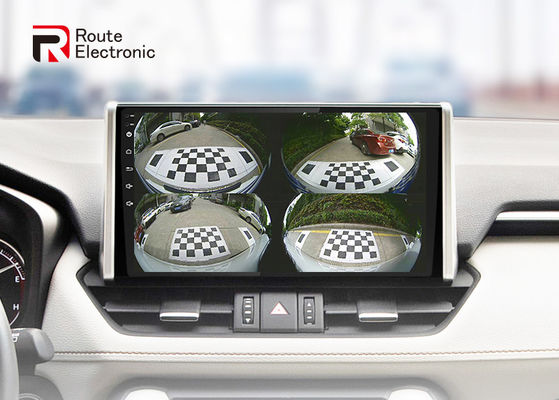

3. It works with Android car stereo, supports 2D and 3D video display mode, driver can freely to switch the 2D and 3D modes according to their demands.

4.Drivers can set the car model type (car /SUV/MPV) and model color with their prefered type, so to make the car more personalization.

5. The cameras support star light night vision, can install for car, bus, truck, it can help improve security of driving.

6. Watel-proof IP67: Strictly implement industrial grade IP67 Waterproof/shockproof /anti-fog without worry,stable and durable





Product Specifition



360 Panoramic Car Camera 1080P AHD SONY 307 Camera With Star Light Night Vision For Bus And Truck Security Camera



Image sensor SONY IMX307 1/3” 1280*1080P
CPU high-performance NVP C5 ISP processor
 Video format PAL & NTSC
PAL Frame rate PAL:1280*1080 @25fps
PAL:1280*960 @25fps


NTSC frame rate NTSC:1280*1080@30fps
NTSC:1280*960@30fps
Video signal AHD 1080P
Resoution AHD:2 milion pixels 1080P/AHD:1.3 milion pixels 960P(optional)
Electronic shutter 1/50(1/60) ~1/100000s
White Balance Auto
Digital Noise Reduction 3D noise reduction
Voltage/Current 9V-16V/80MA(optional)
Signal to Noise Ratio ≥48dB
Video out 1.0Vp-p,75Ω
power consumption 0.6W±10%
Working temperture '-20~80℃
Humidity <80%
Aperture D/f' aperture F: 1.8
Focal-Length(mm) >1.4MM
Mount M12x0.5-6g
TTL(mm) 13
Back focal -length 2.16
warranty  1 year
Distortion <19.2%
Camera lens Glass
Waterproof  IP67
Video display mode 2D , 3D
View angle  360 degree
Scanning system 700lines, 25fields/sec
Synchronization method Internal synchronization
Exposure control Auto
Synchronization method Internal synchronization
Electronic shutter (AES)AUTO /1/50-1/1000 000sec
Horizontal viewing angle 200°
Operating voltage range 4.8~5VDC



360 Panoramic Car Camera 1080P AHD SONY 307 Camera With Star Light Night Vision For Bus And Truck Security Camera



360 Panoramic Car Camera 1080P AHD SONY 307 Camera With Star Light Night Vision For Bus And Truck Security Camera360 Panoramic Car Camera 1080P AHD SONY 307 Camera With Star Light Night Vision For Bus And Truck Security Camera360 Panoramic Car Camera 1080P AHD SONY 307 Camera With Star Light Night Vision For Bus And Truck Security Camera

To Dear customers:



Please note:

  1. Terms of delivery/shipment: FOB Shenzhen
  2. Terms of payment: T/T 30% as deposit, and 70% balance before shipment.
  3. Lead time: sample and small order, 3-7 working day after receiving payment; bulk order, please negotiate before placing orders.
  4. Sample policy: we can provide sample to test, but it will be charged for fee and shipping cost.
  5. Warranty time: 12 months, for all our products.
  6. Please always contact us before purchasing,to make sure you will buy the correct products(car model/car year) and receive them in expected time.
